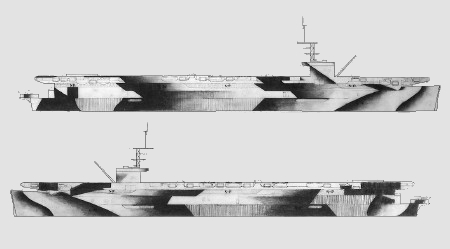

The two drawings for Measure 32 Design 4A for the Casablanca class escort carriers dated March 25, 1944. The vertical colors were specified to be navy blue (5-N), haze gray (5-H), light gray (5-L) and pale gray (5-P) and the horizontal surfaces color was deck blue (20-B). This color combination is called Measure 32, but on some other drawings this combination might be labeled Measure 33. Like other Design 4A drawings, some edges of the dark color: navy blue (5-N) were intended to be “feathered” or slowly blended into the lighter color. Feathering usually required using a sprayer and might only be done at a port facility.
The First drawing for Design 4A was for USS Enterprise (CV-6) in March 1943. An August 1943 memo from the Pacific Fleet to the Bureau of Ships recommended: “Soft, graded patterns should be avoided until expert supervision for application may be made available.” The 4A Design for CV-6 was redrawn on February 23, 1944, and labeled 4Ab possibly because the design’s panels all had solid edges instead of the soft feathered edges of many panels of Design 4A. It is possible that the original Design 4A was modified to be 4Ab to comply with the PacFleet recommendation. Then on March 21, 1944, Design 4A was produced for the Bogue class of escort carriers and later on March 25, 1944, for the Casablanca class escort carriers as above and finally for the Charger class of escort carriers on May 8, 1944. Most of the escort carriers that wore Design 4A were in the Atlantic Fleet.
Original drawing source: NARA 80-G-109641 and 80-G-109842.
