U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Auxiliary Ships
Cargo Ships |
View by Design Number |
|
||||||
| Design Number | Silhouette | Ships Wearing Design | ||||
|---|---|---|---|---|---|---|
for CM-11 |
Measure 32
| |||||
Drawing

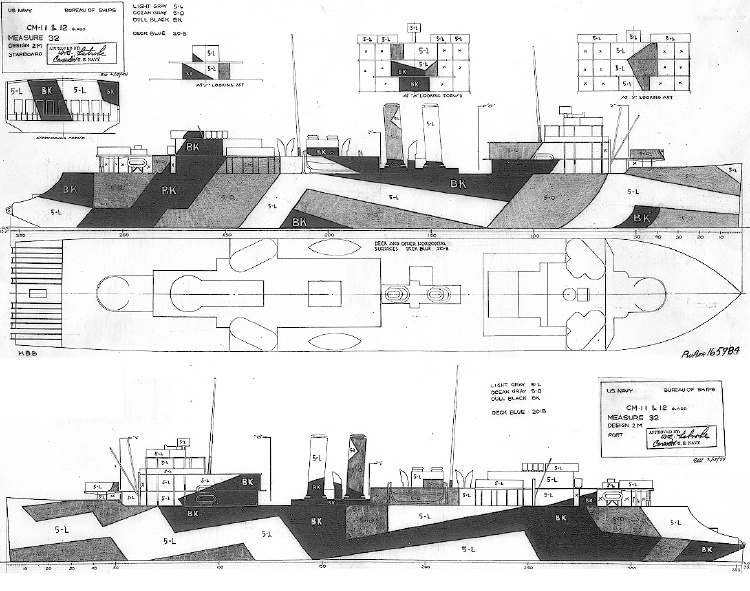

The drawing for Design 32/2M for the Salem class minelayers which had been modified from ferries. The Measure 32 vertical colors specified were: dull black (BK), ocean gray (5-O) and light gray (5-L) and the deck was deck blue (20-B). This drawing was dated February 17, 1944.
There have been no other drawings for Design 2M found.
Original drawing source: NARA 80-G-165983 and 80-G-165984.
