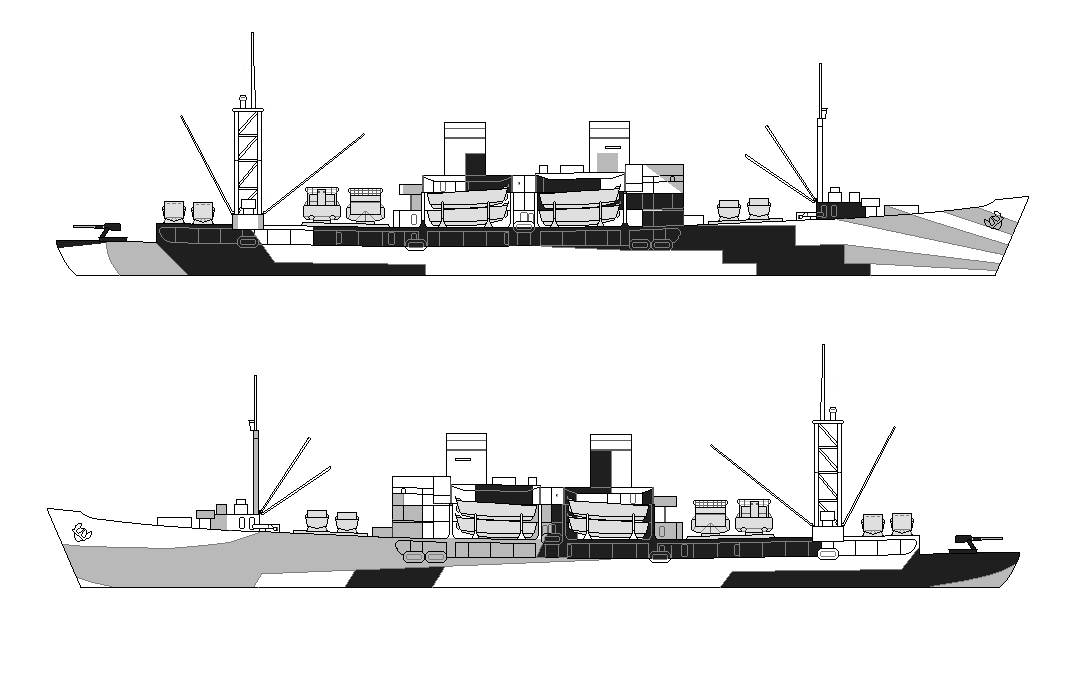

This is what the drawing for Measure 32 Design 4T for the Artemis
class attack cargo ships of (S4-SE2-BE1) maritime type hull may have looked like dated possibly September 1944.
The vertical colors for Measure 32 would have been dull black (BK), ocean gray (5-O) and light gray (5-L) with deck blue (20-B) for the horizontal colors. Some ships painted the boats haze gray (5-H) and some used darker colors.
class attack cargo ships with S4-SE2-BE1 hulls were very similar to Gilliam
class attack transports with S4-SE2-BD1 hulls except for the derrick crane and some structural changes so both classes may have used the same drawing. The drawing for either class has not yet been found.
Original drawing source: NARA 80-G-000000.
