U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Transports

View by Design Number

for APA-33

Design 3D

for APA-33

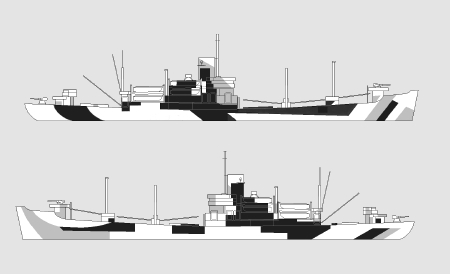

Design Number Silhouette Ships Wearing Design
for APA-33
Measure 32
Prince Georges (AP-165)Monrovia (APA-31)
Bayfield (APA-33)Cambria (APA-36)
Cavalier (APA-37)Chilton (APA-38)
Clay (APA-39)Fayette (APA-43)
Fremont (APA-44)Henrico (APA-45)
Knox (APA-46)Leon (APA-48)
Ormsby (APA-49)Pierce (APA-50)
Sheridan (APA-51)Adair (APA-91)
Alpine (APA-92)Barnstable (APA-93)
Cecil (APA-96)Mendocino (APA-100)
Hansford (APA-106)Goodhue (APA-107)
Drawing

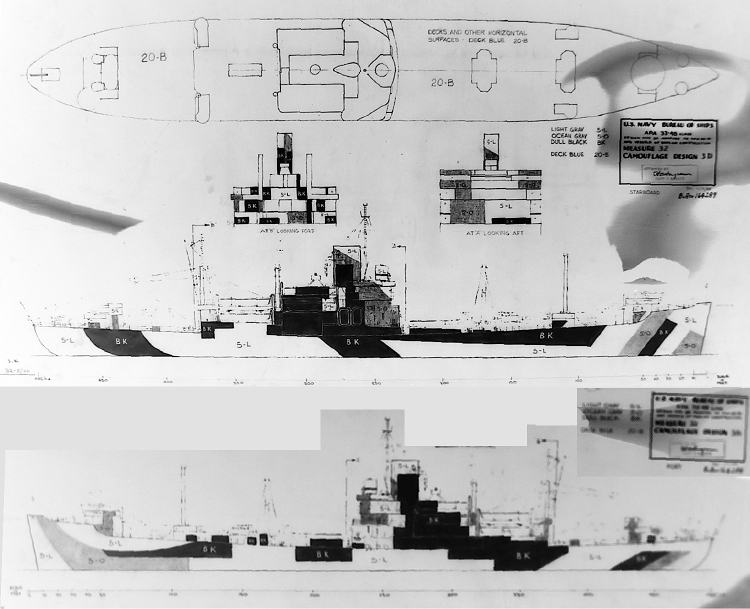

This is the drawing for Measure 32 Design 3D for the Bayfield class attack transports of (C3-S-A2) maritime type hull dated January 11, 1944. The vertical colors were specified to be dull black (BK), ocean gray (5-O) and light gray (5-L) with deck blue (20-B) for the horizontal color. There was no indication of special colors for the boats.

A Design 3D drawing was attached to the July 15, 1943, memo to PacFleet for the DD-380 Gridley class of destroyers. Design 3D was also drawn for every other class of destroyers and destroyer escorts and for most other classes of major warships including the Independence class light carriers, the Casablanca class escort carriers, Omaha class light cruisers and Cleveland class light cruisers. The battleship USS Colorado (BB-45) also used Design 3D beginning in October 1943. A handful of ships of the Livermore class of destroyers and some destroyer escorts used a mirrored version in which the port pattern appeared on the starboard and the starboard pattern was painted on the port side. I have identified this as 3D rev (reversed) even though there seem to be no USN drawings that would depict this.

Original drawing source: NARA 80-G-164288 and 80-G-164289.
