U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Auxiliaries I

View by Design Number

for AF-14

Design 9T

for AF-14

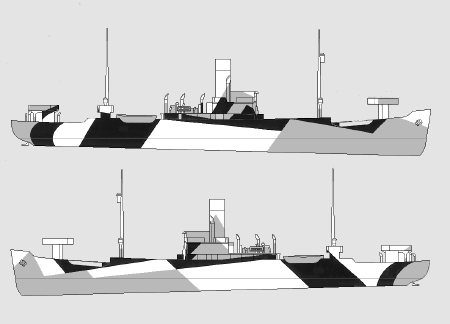

Design Number Silhouette Ships Wearing Design
for AF-14
Measure 32
Uranus (AF-14)
Drawing

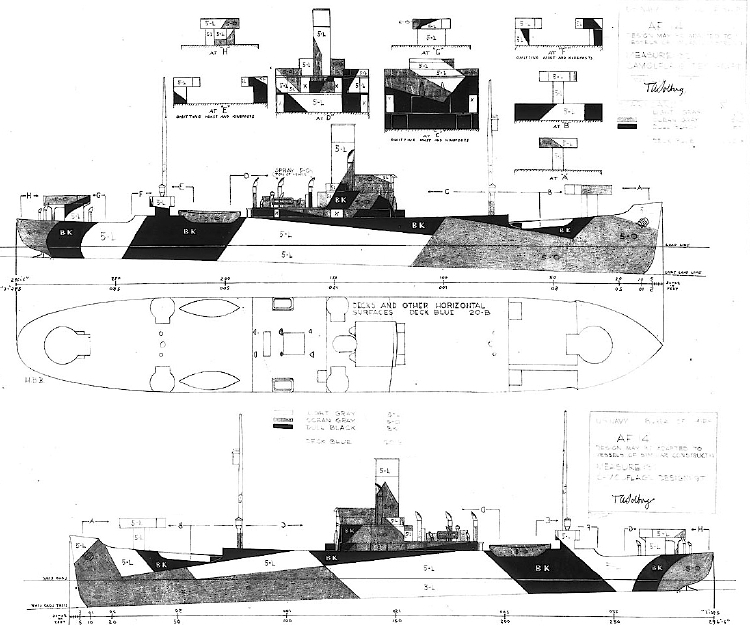

The drawing for Measure 32 Design 9T for the store ship USS Uranus (AF-14) dated July 14, 1944. This drawing specified vertical colors of light gray (5-L), ocean gray (5-O), and dull black (BK) with the horizontal color of deck blue (20-B). Also note, two waterlines are shown.

The first drawing for Design 9T was for the Heywood class attack transports on June 1, 1944. Then 9T was drawn for the the stores ship USS Uranus (AF-14) on July 14, 1944, as above.

Original drawing source: NARA 80-G-174750 and 80-G-174751.
