U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Auxiliaries II

View by Design Number

for AD-4

Design 13Ax

for AD-4

Design Number Silhouette Ships Wearing Design
for AD-4
Measure 32
Whitney (AD-4)
Drawing

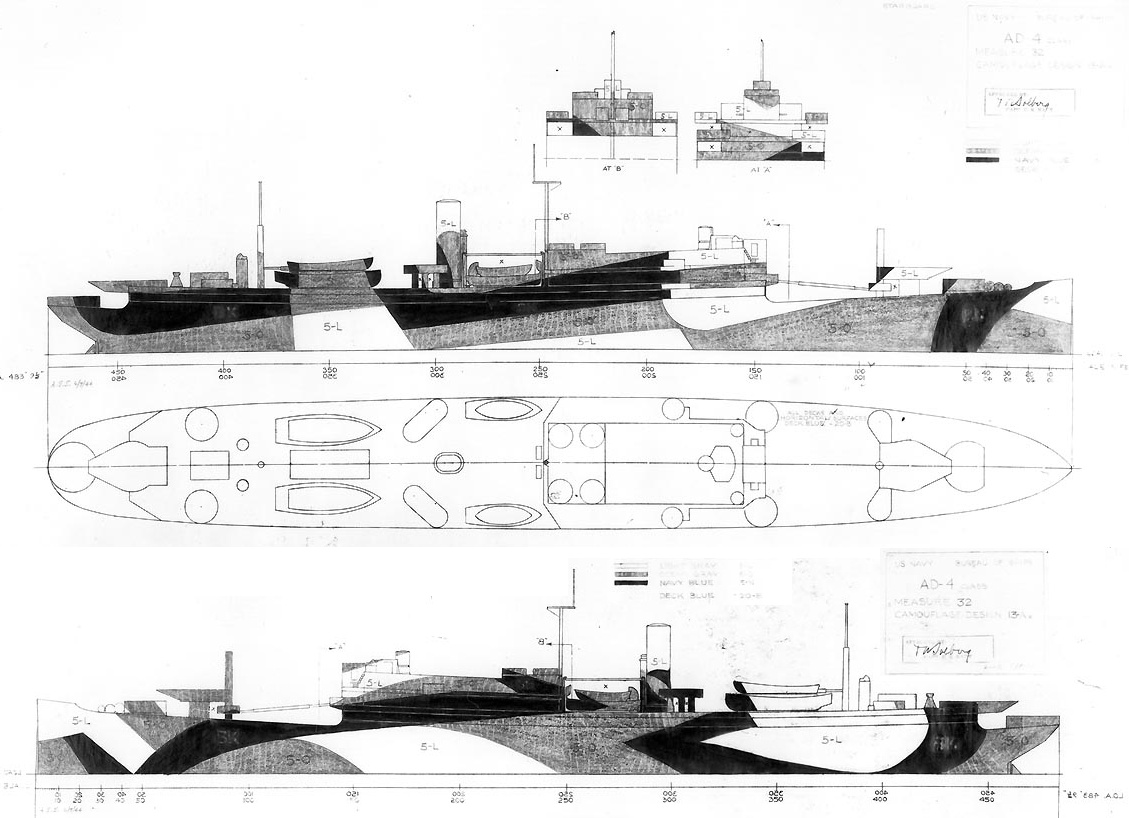

32/13Ax Drawing    The drawing for Design 32/13Ax for the destroyer tender USS Whitney (AD-4) dated March 9, 1944. The vertical colors for Measure 32 were navy blue (5-N), ocean gray (5-O) and light gray (5-L) with deck blue (20-B) for the horizontal color.

   This is the only Design 13Ax drawing yet found.

   Original drawing source: NARA 80-G-176505 and 80-G-176506.
