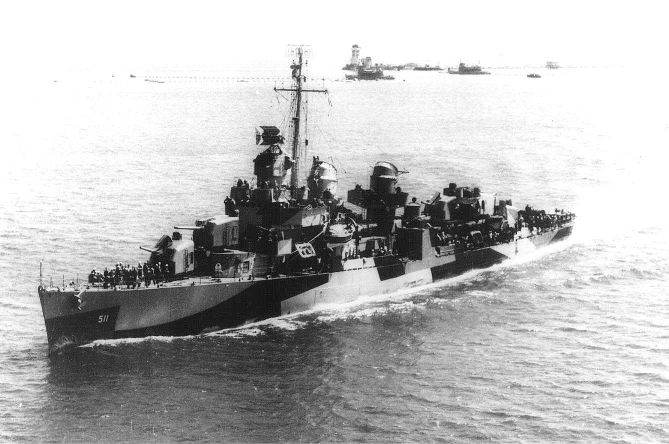

USS Foote (DD-511) on July 8, 1944 at San Pedro, California wearing dull black, ocean gray and light gray of Measure 32. The deck pattern is visible on the stern as well as a black panel on the stern that was shown only in the round bridge version of the drawing. Photo source: NARA BS 68083.

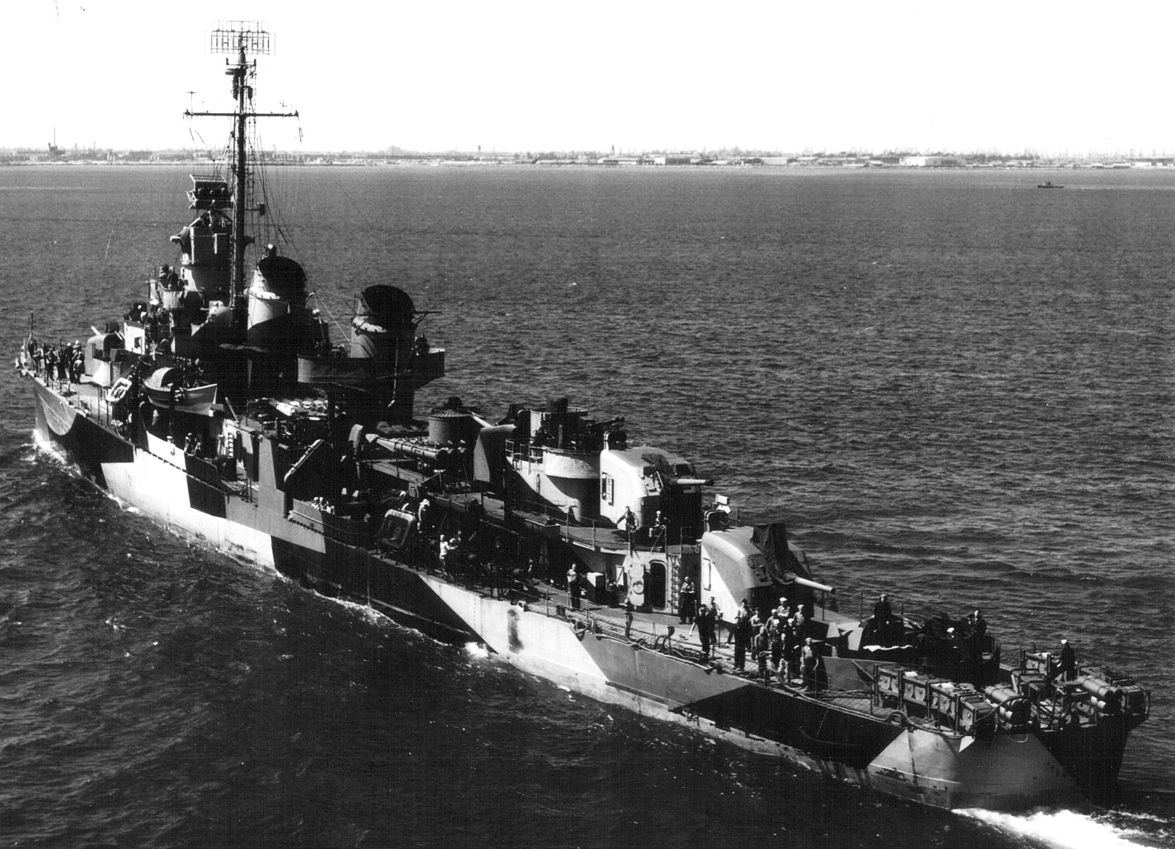

Foote again at San Pedro on July 8, 1944 wearing 32/18D. Photo source: NARA BS 68082.

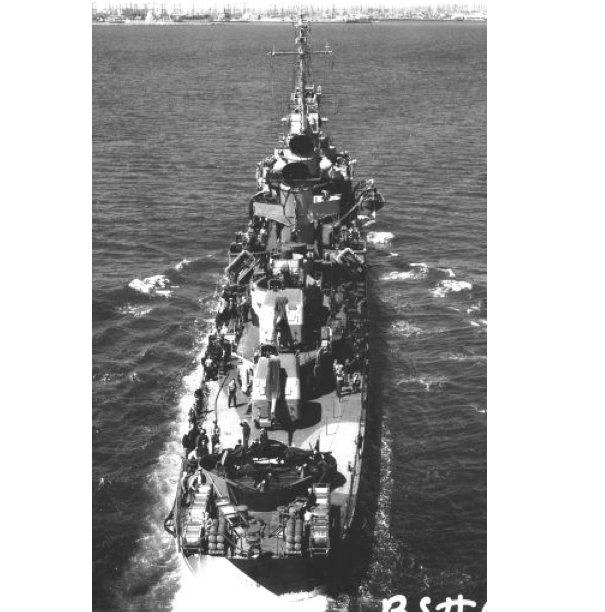

Another shot of Foote at San Pedro. The deck pattern is visible from this angle. Photo source: NARA BS 68085.

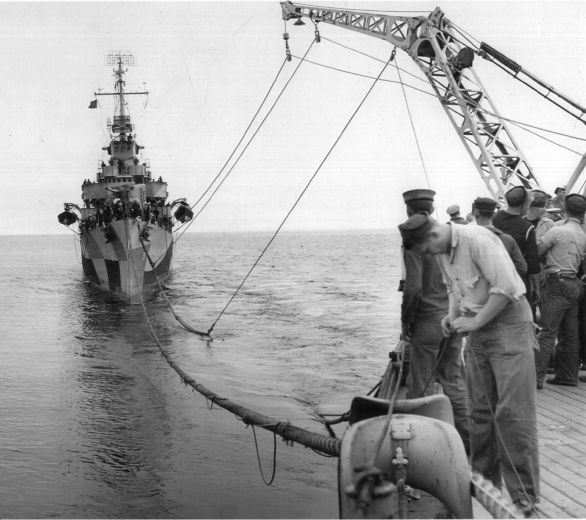

USS Foote (DD-511) on July 4, 1944 refueling from the battleship USS West Virginia (BB-48). Photo source: NARA 80-G-243916.
Camouflage Measure and Design was assigned in 10/11/43 ComServPac letter #0937 to the BuShips which assigned camouflage Designs to most ships in the Pacific Fleet.
