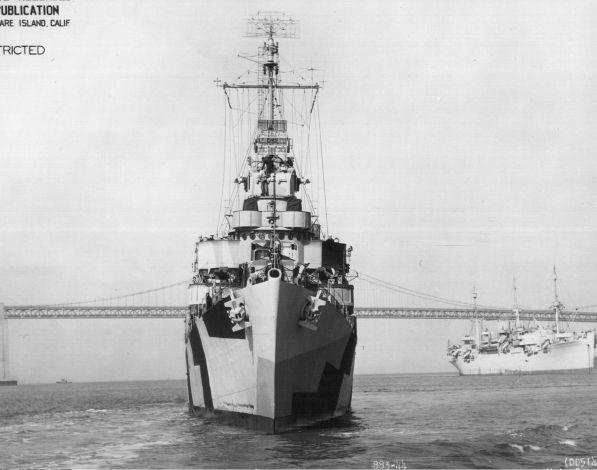

USS Thatcher (DD-514) on February 7, 1944 in San Francisco Bay wearing 31/2C. Notice how this pattern wraps around the bow. Photo source: NARA BS 61382.

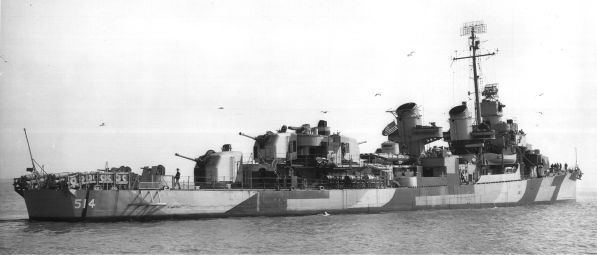

USS Thatcher (DD-514) again on February 7, 1944, outside of Mare Island. The lower contrast between the ocean gray and the lighter color confirms that it is haze gray. Notice the extra stripe on the stern quarter. Photo source: NARA BS 61381.
USS Thatcher (DD-514) shown on February 5, 1944 at Mare Island, matching the drawing for 31/2C very well. The deck pattern is clearly visible. The white dots are holes punched in the print and the circles are on the copy negative to indicate modifications made at the yard. Photo source: NARA BS 61379.

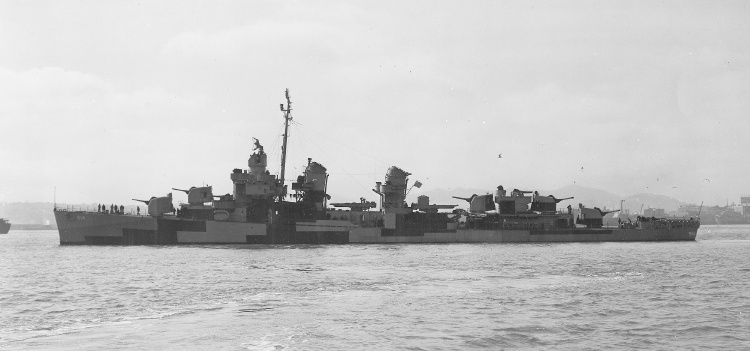

Another photo of Thatcher in San Francisco Bay on February 7, 1944, from the port side. This side is in shadow and the colors barely show up. Photo source: NARA BS 61380.
One last photo of Thatcher in the Pacific on March 23, 1944, taken from the USS Montpelier (CL-57) showing the port side. Photo source: NARA 80-G-232121
Camouflage Measure and Design was assigned in 10/11/43 ComServPac letter #0937 to the BuShips which assigned camouflage Designs to most ships in the Pacific Fleet.
