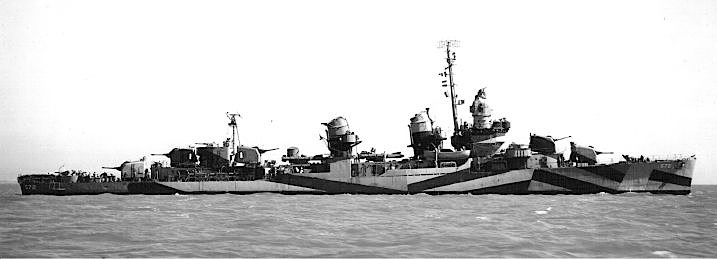

A view of USS Dyson (DD-572) from the starboard side on September 30, 1944 taken outside of Mare Island. The camouflage is 31/16D using dull black (BK), ocean gray (5-O) and haze gray (5-H). Dyson has an added mainmast with antennas. Photo source: NARA BS 73204.

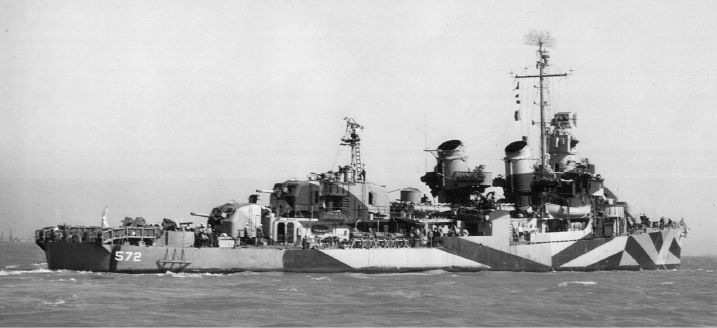

Dyson again from the starboard side leaving Mare Island on September 30, 1944. Workers or sailors seem to be still installing the stub mainmast with its antennas. There is an extra panel on the stern quarter. Photo source: NARA BS 73207.
Camouflage Measure and Design was assigned in 10/11/43 ComServPac letter #0937 to the BuShips which assigned camouflage Designs to most ships in the Pacific Fleet.
