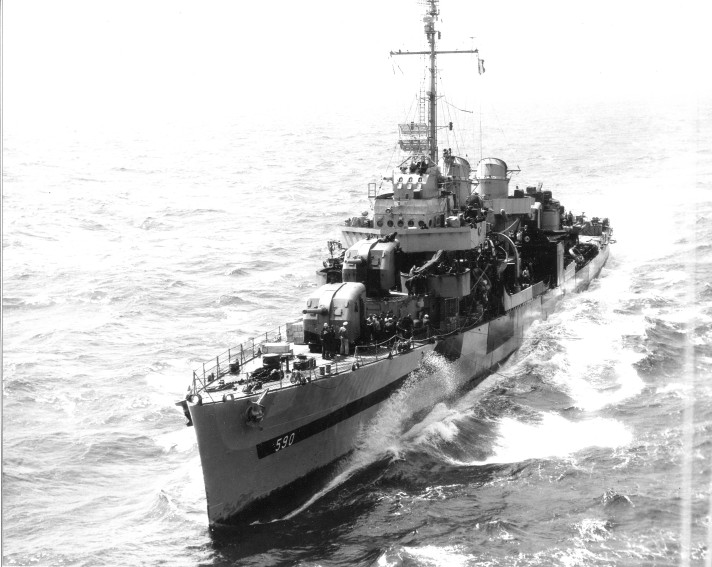

A photo of USS Paul Hamilton (DD-590) on March 7, 1944, taken at an unidentified location, but probably Norfolk. Photo source: NARA BS 126942.

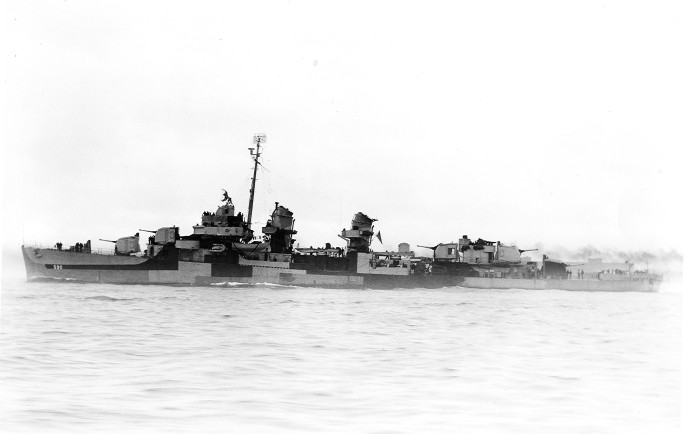

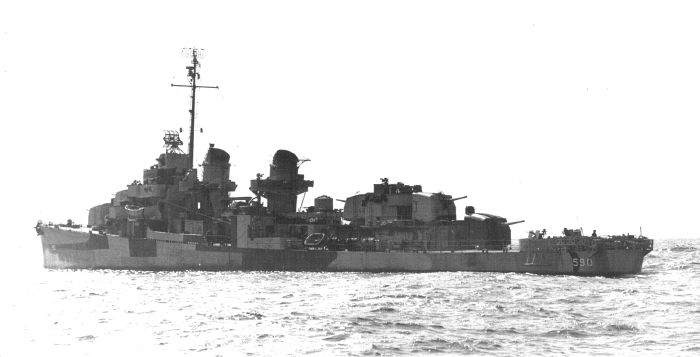

Paul Hamilton in an another view (also probably March 1944) of the stern showing the extra panels painted there in an effot to match the 3D drawing. In both photos the lower contrast between the lightest color and the ocean gray (medium) suggest that the lightest color may be haze gray and therefore Measure 31. Photo source: NARA BS 126945.

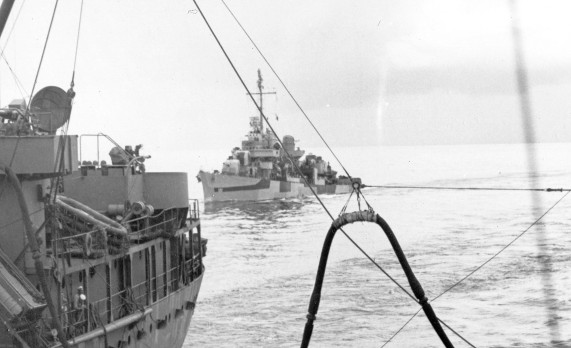

USS Paul Hamilton (DD-590) on Septmber 15, 1944, is seen approaching an unidentified oiler for refueling. This photo taken from the escort carrier USS Sargent Bay (CVE-83). Photo source: NARA 80-G-263685.
USS Paul Hamilton (DD-590) again on Septmber 15, 1944, is seen refueling from an unidentified oiler. This photo taken from the escort carrier USS Sargent Bay (CVE-83). Photo source: NARA 80-G-263688.

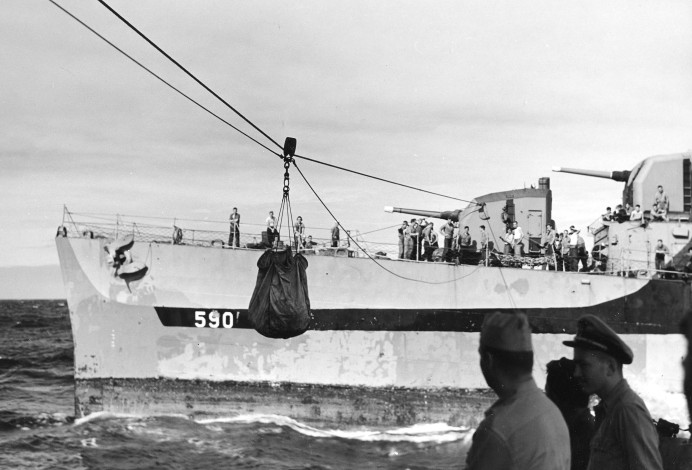

A close-up of Paul Hamilton on January 18, 1945, taken while transfering mail to the USS Natoma Bay (CVE-62). The paint is very weathered in this view and will probably be repainted before the March 11, 1945, photo. Photo source: NARA 80-G-276050.

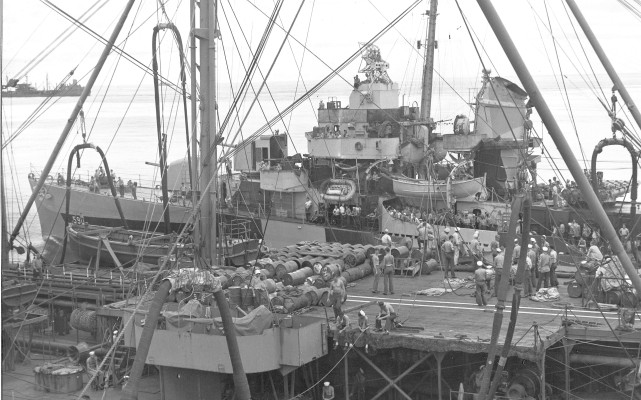

Paul Hamilton sometime in March 1945, approaching the escort carrier USS Sargent Bay (CVE-83) to transfer rockets. Photo source: NARA 80-G-264056.

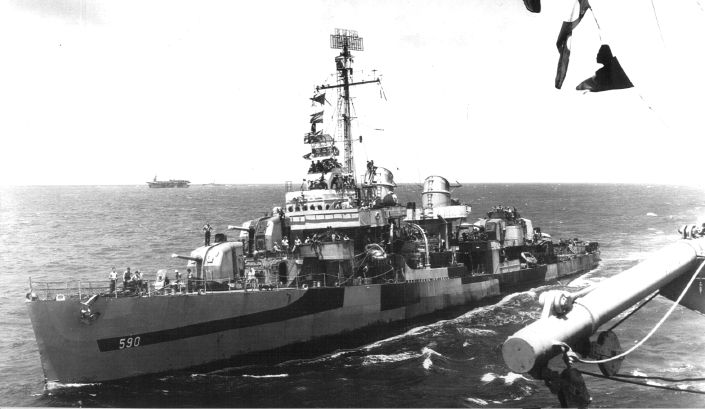

USS Paul Hamilton (DD-590) on March 11, 1945, during the Iwo Jima campaign coming alongside the escort carrier USS Makin Island (CVE-93) with another escort carrier in the background. There are versions of this photo with the radars erased by a wartime censor. Photo source: NARA 80-G-309725.
Camouflage Measure and Design was assigned in 10/11/43 ComServPac letter #0937 to the BuShips which assigned camouflage Designs to most ships in the Pacific Fleet.
