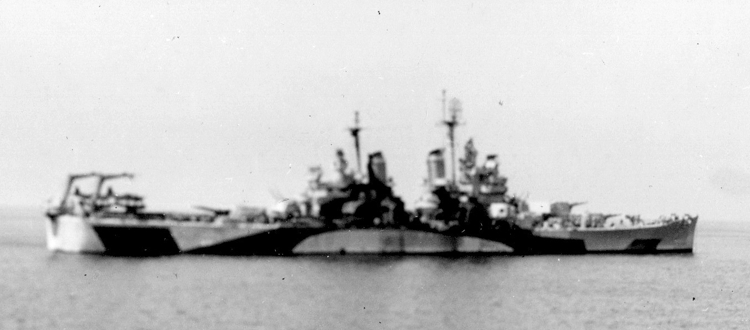

The Baltimore class heavy cruiser USS Quincy (CA-71) in The Atlantic on May 4, 1944, in camouflage 33/18D. The vertical colors used were navy blue (5-N), haze gray (5-H) and pale gray (5-P). Notice the panel on the stern matches the archived drawing. Photo source: NARA 80-G-233820.

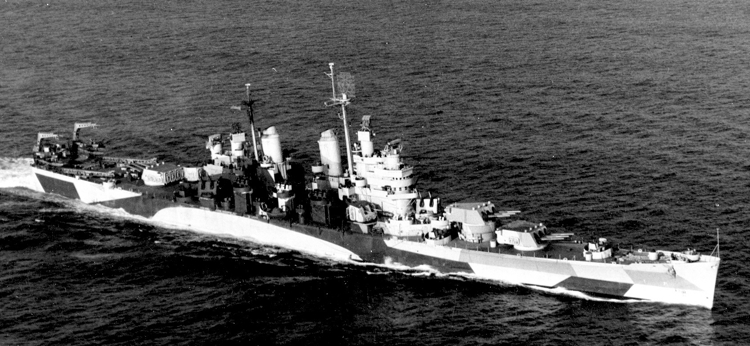

Quincy is shown again in an aerial view taken by squadron ZP-11 on May 4, 1944. Photo source: NARA 80-G-233819.

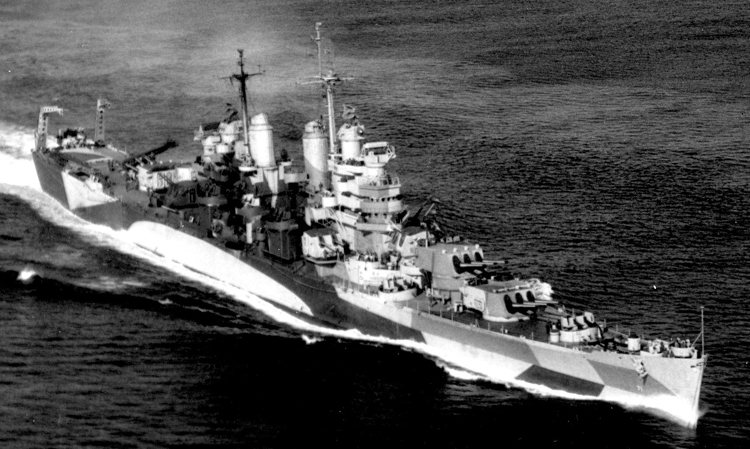

This is USS Quincy (CA-71) in another photo in the aerial series taken by ZP-11. Notice the aft-most panel matches the drawing, but the cranes and catapults do not, these were the chages to the pattern that Quincy requested and got approved. Photo source: NARA 80-G-233814.

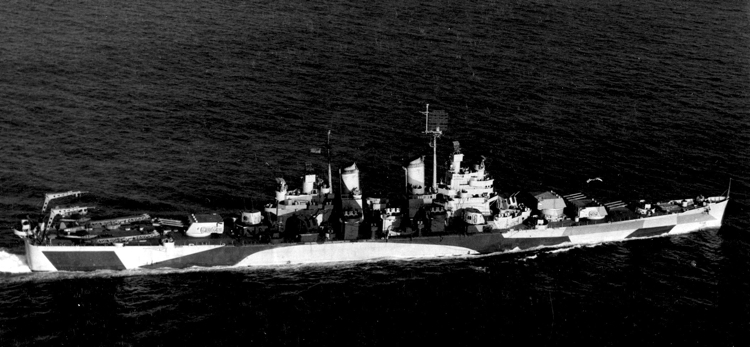

Quincy again taken from USS Philadelphia (CL-41), this time while supporting the landings on The South of France in July 1944. The aft black panel still matches the drawing and does not extend up to deck line. Photo source: NARA 80-G-256266.

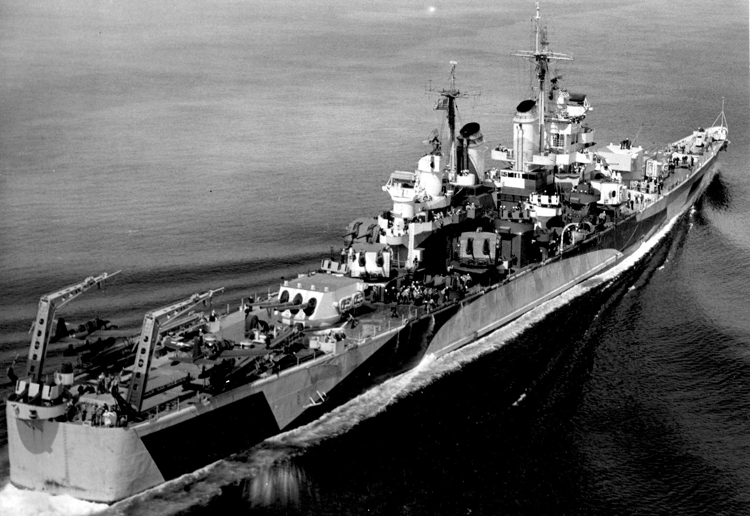

This is USS Quincy (CA-71) taken again by ZP-11 off the Atlantic coast on November 3, 1944. Note that aft stern panel here is painted to the deck. This was part of the changes to the drawing requested by Quincy, but apparently not completed until later. Photo source: NARA 80-G-289731.
CA-71 was scheduled to receive 32/18D, but requested approval from ComServPac to paint 33/18D. CA-71 also requested from BuShips minor changes to the 18D pattern on 3/24/44 and received a drawing with modifications on 4/27/44.
