Measure 32
Saratoga (CV-3)
Drawing

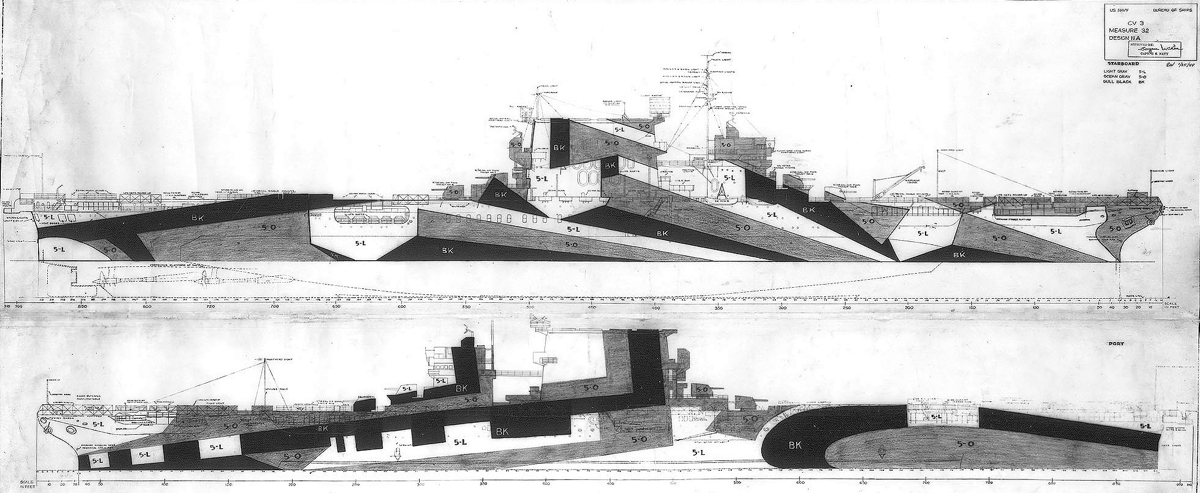

The drawings for Measure 32 Design 11A for the carrier USS Saratoga (CV-3) dated January 25, 1944. The vertical colors were specified to be dull black (BK), ocean gray (5-O) and light gray (5-L) with the horizontal surfaces deck blue (20-B).

The earliest drawing for Design 11A was on January 25, 1944, for the carrier USS Saratoga (CV-3) and at the same time for the Sangemon class of escort carriers. This design was then redrawn on January 27, 1944, for the Cleveland class cruisers. On April 21, 1944, it was drawn for the General John Pope class of transports. Design 11A was redrawn for the gasoline tanker USS Kaloli on May 1, 1944. Finally, it was drawn for the Allen M. Sumner class of destroyers on May 11, 1944.

Original drawing source: NARA 80-G-165991.
