Auxiliaries II |
View by Design Number |
|
|||||||||||||||||||||||||||||||||||||
Design Number | Silhouette | Ships Wearing Design | |||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
for LST-1 |
Measure 31
|
The drawing for Measure 31 Design 5L for LST and similar ships has not yet been found, but probably existed. The vertical colors were probably dull black (BK), navy green (5-NG), brown (3A), ocean green (5-OG) and haze green (5-HG) with deck green paint on horizontal surfaces.
See Design 5L silhouette in color

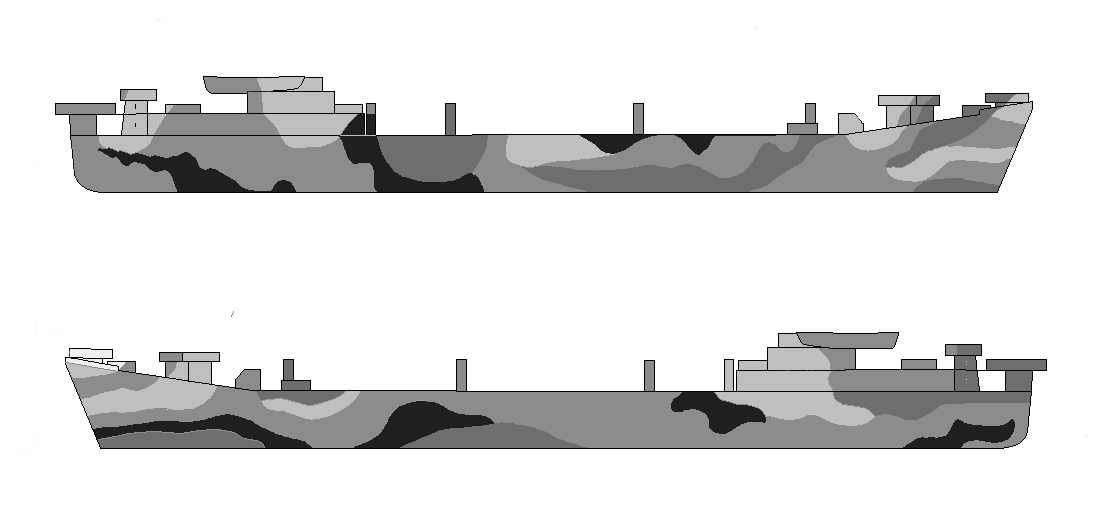

The drawing for Design 5L has not yet been found and this drawing was created from photos.
Original drawing source: NARA 80-G-000000.
