Destroyers

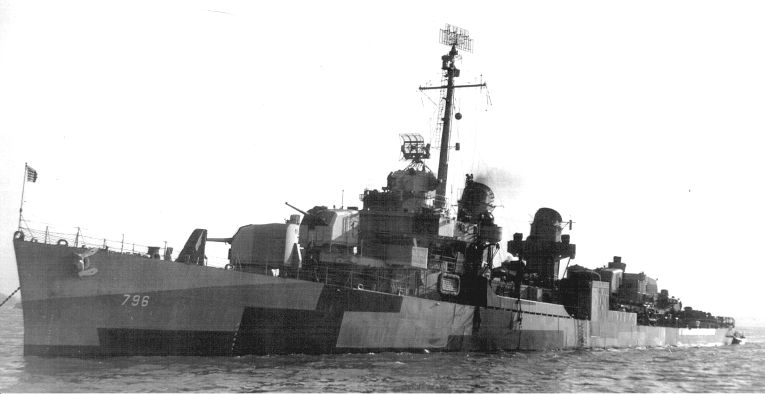

USS Benham (DD-796) port bow in New York Harbor on January 7, 1944 in fresh Measure 31 colors: dull black, ocean gray and haze gray.
Photo source: NARA BS 57784.

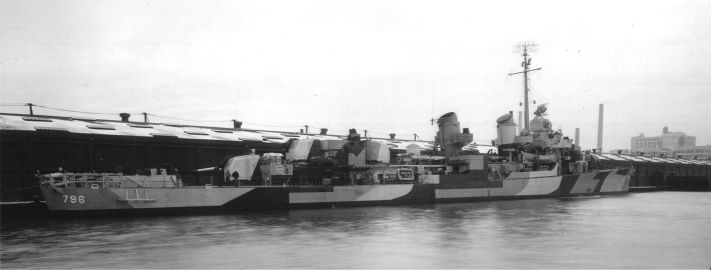

USS Benham (DD-796) docked at the New York Navy Yard on January 4, 1944 showing the starboard pattern of 31/2C.
Photo source: NARA BS 57785.

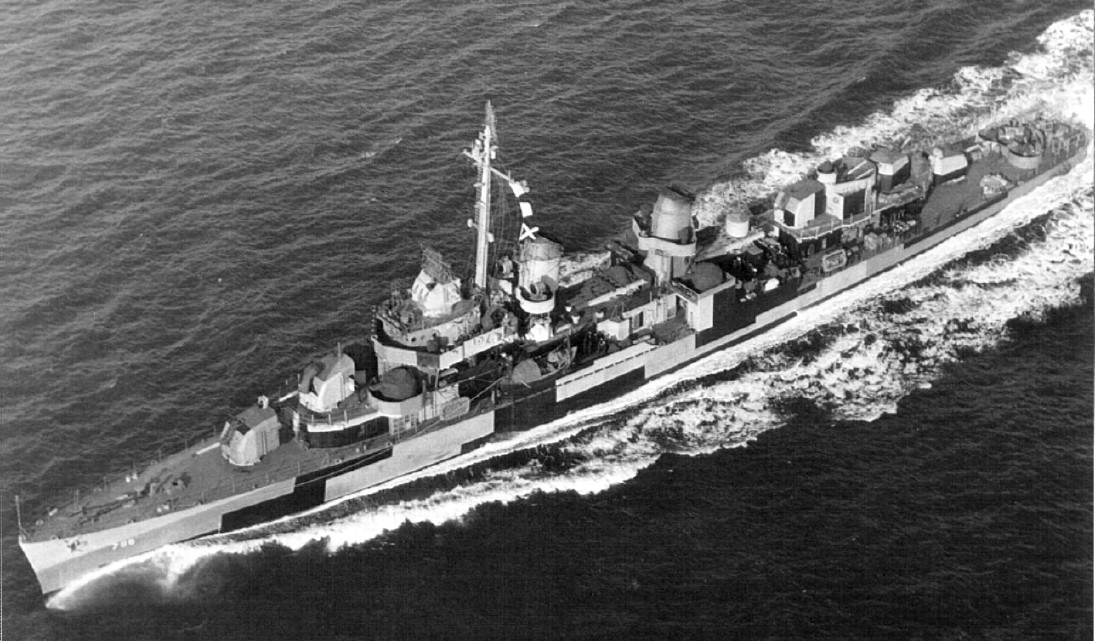

An aerial view of Benham from the port bow on January 8, 1944 outside of New York. Benham is not quite complete, the twin 40mm has not been installed on the after deckhouse. The deck is in the bright sun so the deck blue and ocean gray on the deck may blend together, but I think no pattern has been painted yet .
Photo source: NARA 80-G-211196.

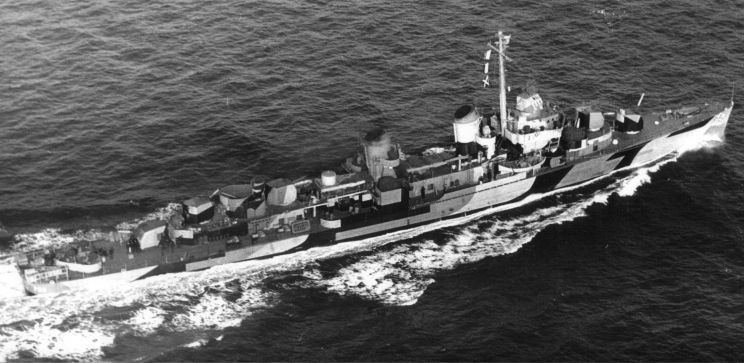

USS Benham (DD-796) again from the air outside New York on January 8, 1944. The deck color here appears to be solid deck blue. The haze gray is reflective and almost appears light enough to be light gray.
Photo source: NARA BS 58128.

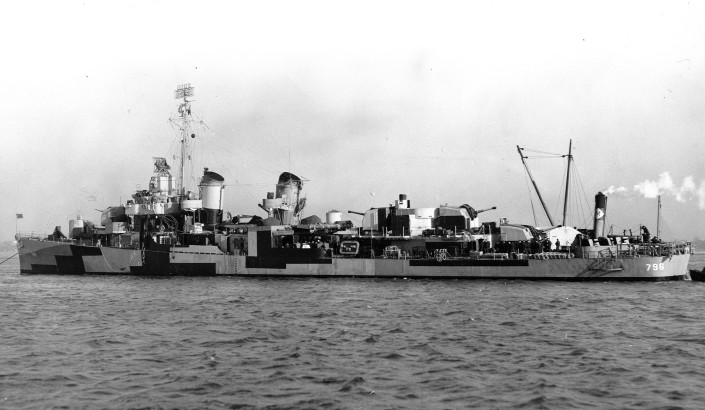

USS Benham (DD-796) again on January 7, 1944 in New York harbor. There is a barge and tug moored along the starboard side.
Photo source: NARA BS 57786.

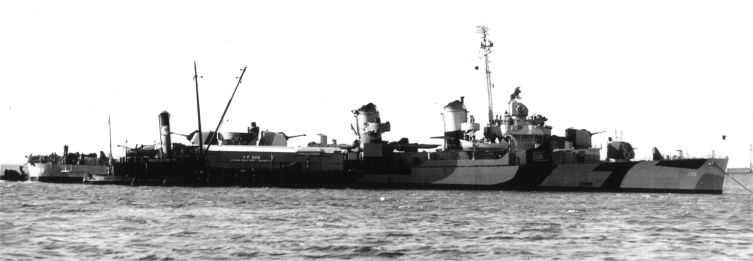

USS Benham (DD-796) again on January 7, 1944 in New York harbor from the port side.
Photo source: NARA BS 57781.

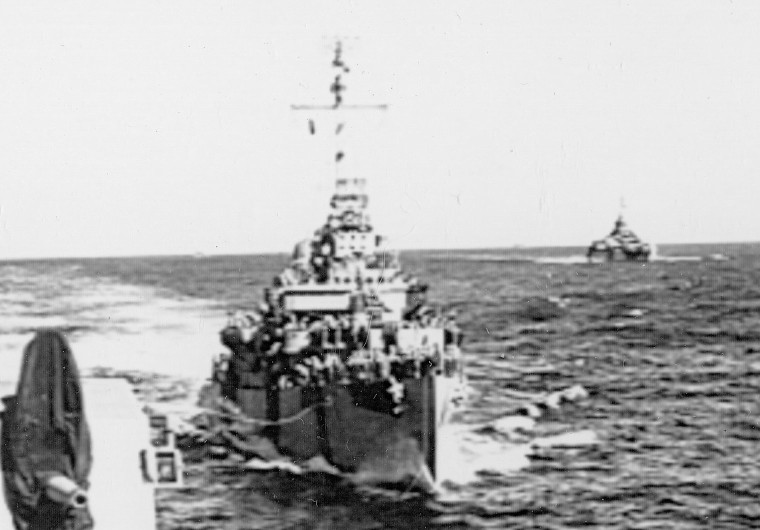

This is probably USS Benham (DD-796) even though the hull number is not clear. This was originally a color photograph and the color has deteriorated so that only black and white is left. This was taken from the USS New Mexico (BB-40) probably some time in June 1944.
Photo source: NARA 80-G-K-1809.

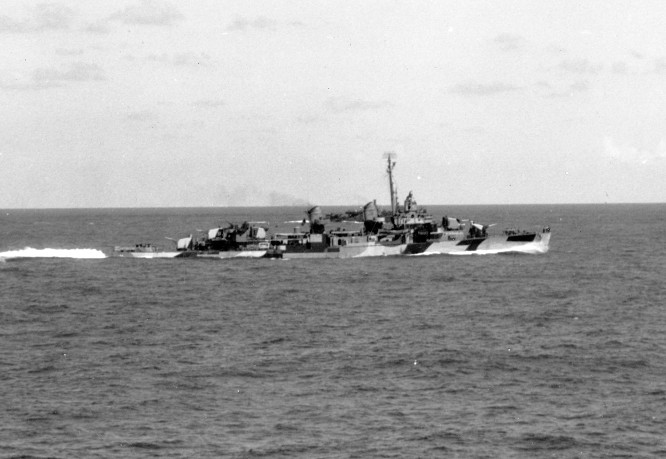

USS Benham (DD-796) seen from the escort carrier USS Gambier Bay (CVE-73) on June 12, 1944. There is some flaking paint on the bow.
Photo source: NARA 80-G-243385.

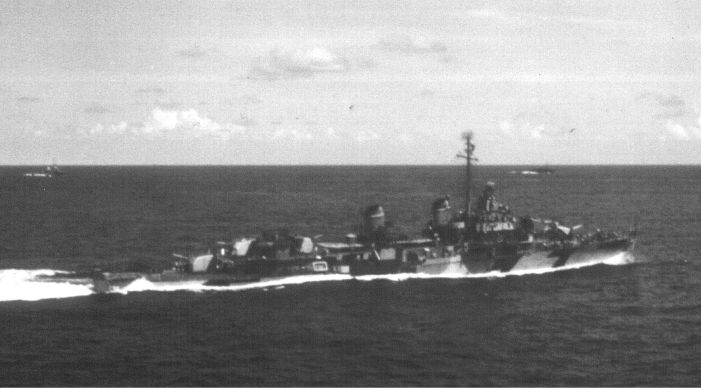

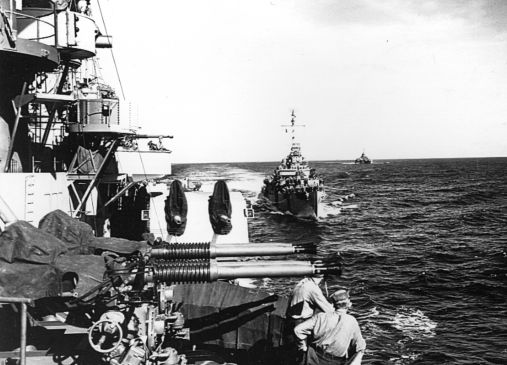

An unidentified Fletcher with square bridge in camouflage Design 2C viewed from the USS Birmingham (CL-62) on June 14 or 15, 1944. The only square bridge Fletchers known, or reported, in 2C were Charles J. Badger and Benham. Badger at this time was stationed in Alaska, so this probably is Benham.
Photo source: NARA 80-G-253996.

An enlargement of an unidentified Fletcher with square bridge in camouflage Design 2C viewed from the USS Birmingham (CL-62) on June 14 or 15, 1944. The medium color ocean gray (5-O) is not resolvable here. The only square bridge Fletchers known, or reported, in 2C were Charles J. Badger and Benham. Badger at this time was in Alaska, so this probably is USS Benham (DD-796).
Photo source: NARA 80-G-253996.

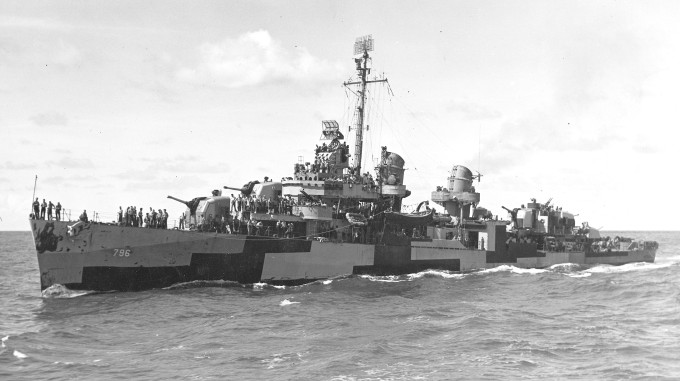

USS Benham (DD-796) is shown again from the escort carrier USS Gambier Bay (CVE-73) from the starboard side on June 12, 1944.
Photo source: NARA 80-G-243387.
