U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Battleships

View by Design Number

All Classes

View by Design Number

for BB-61

Design 7A

for BB-61

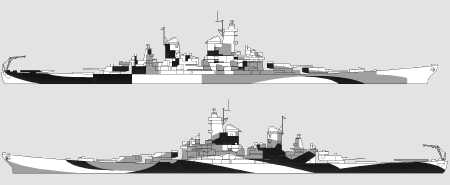

Design Number Silhouette Ships Wearing Design
for BB-61
Measure 32
Wisconsin (BB-64)
Drawing

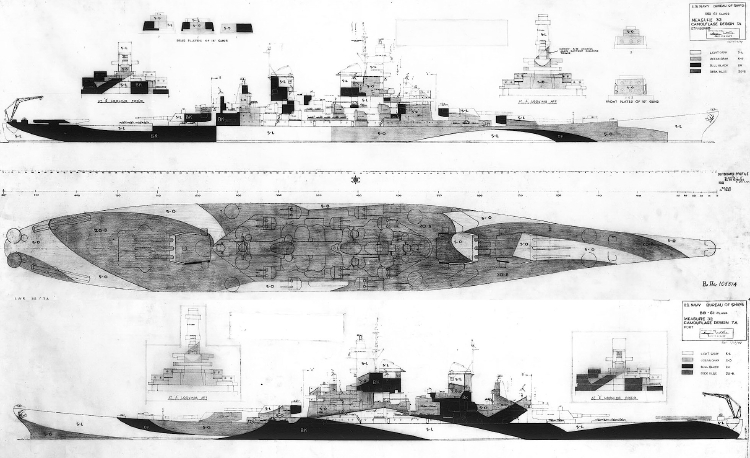

The Measure 32 Design 7A drawings for the Iowa class battleships dated January 19, 1944. The Measure 32 colors are dull black (BK), ocean gray (5-O) and light gray (5-L) vertically with a pattern of deck blue (20-B) and ocean gray on the horizontal surfaces. This drawing was sent to USS Wisconsin (BB-64) on April 20, 1944, but was never used by her.

The first version of Design 7A seems to have been for the Bogue class escort carriers on September 4, 1943, using Measure 33 colors. Then probably in November 1943, Design 7A was redrawn for the Independence class light carriers also in Measure 33. On January 19, 1944, Design 7A was drawn up for the Iowa class battleships as above using Measure 32 colors.

Original drawing source: NARA 80-G-105514 and 80-G-105515.
